Product Description

R440 series GNSS antenna

   R440 series GNSS antenna is a kind of highly reliable antenna that is shockproof, and Water / Dust Resistance rated IP69K. Frequency range covers BDS, GPS, GLONASS and GALILEO, meeting the demand for high-precision, multi-system compatible, all-weather use of measurement equipment.

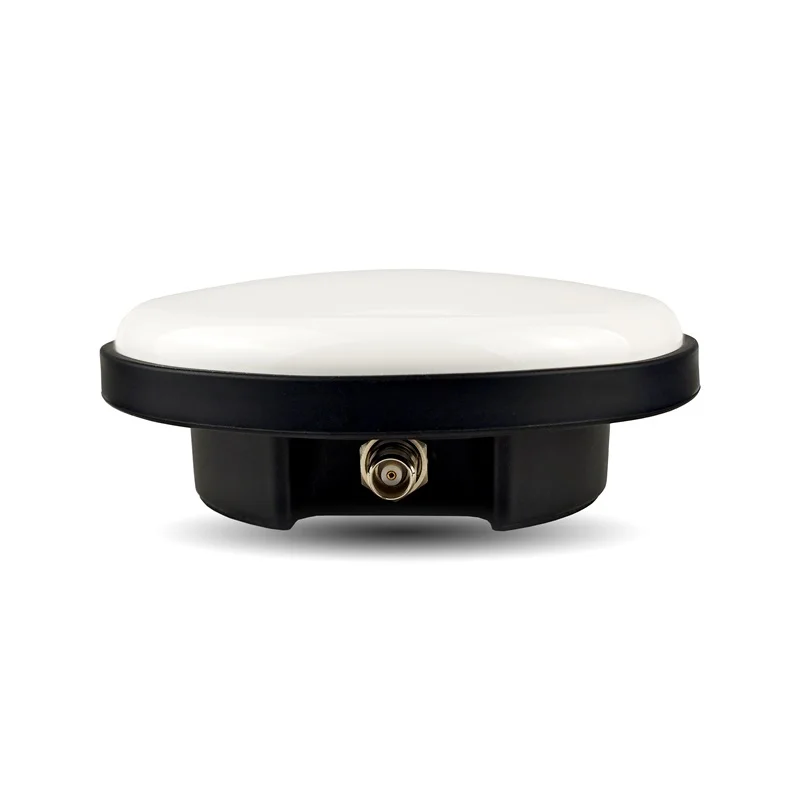

product picture of R440 series GNSS antenna

key Features

  • Comprehensive GNSS support: 1165MHz~1300MHz, 1525MHz~1615MHz
  • Stable phase center ensures millimeter positioning accuracy: ±2mm
  • Aluminum Alloy Base, ABS+PC Lid
  • Water / Dust Resistance: IP69K
  • Operating Temperature: -55~85℃

There are TWO kinds of R440 series GNSS antenna: R440A and R440B

Product Picture of R440A:

product picture of R440-A series GNSS antennaproduct picture of R440-A series GNSS antenna

Product Picture of R440B:

product picture of R440-B series GNSS antennaproduct picture of R440-B series GNSS antenna

Product Dimensions

Ruggedized High Precision Survey GNSS Antenna R440A drawingRuggedized High Precision Survey GNSS Antenna R440B drawing

Specification

Antenna Characteristics

Frequency Ranges

1165MHz~1300MHz, 1525MHz~1615MHz

GNSS Systems Supported

GPS L1/L2/L5

GLONASS L1/L2/L3

BEIDOU B1I/B2I/B3I/B1C/B2a/B2b

Glileo E1/E5a/E5b/E6

SBAS L1/L5

QZSS L1/L2/L3/L6

NAVIC L5

L-band

Nominal Impedance

50 Ω

Polarization method

Right-handed circular polarization(RHCP)

Axial Ratio

≤3dB

Horizontal Coverage Angle

360°

Output VSWR

≤2.0

Max. Gain

5.5dBi





Specifications of Low Noise Amplifier

Gain

40±2dB

Noise Figure

≤2dB

Output VSWR

≤2.0

In-band flatness

±2dB

Operating Voltage

+3.3~ +18VDC

Operating Current

≤45mA

Group Delay Ripple

≤5ns

EMC(RF port static)

touch 8KV, air 15KV,

10 times

Structural Characteristics

Dimensioin

Φ150×53mm

Weight

≤600g

Connector

TNC Female

Vibration

9.8gRMS, 24-2000Hz

Impact

3 vertical axis 75Gs, 6ms

Salt Spray

96h

Water/Dust Resistance

IP69K

Installation Methods

Alignment bar mounting, Mounting Thread Specification: inch thick, thread of screw 5/8"-11, depth 10-11mm,

screwdriver installation: M8 screwdriver

Working Environment

Operating Temp.

-55℃ ~ +85℃

Humidity

95% non-condensing

Storage Temp.

-55℃ ~ +85℃



Installation Instructions

Installation Instructions of R440 series GNSS antennaInstallation Instructions of R440 series GNSS antenna

Installation Methods of R440A:

Step 1: Place the antenna on the mounting plane, aiming to 3 mounting holes, torque 5~10N.M is recommended.

Installation Methods of R440A GNSS antennaInstallation Methods of R440A GNSS antenna

Step 2: Opening holes is needed in the mounting bracket of antenna waterproof valve position , also ensure that the reserved space can get normal exhaust.

Installation Methods of R440B:

Step 1: Align the threads of the alignment mounting rod with the mounting holes underneath the antenna, and turn the antenna clockwise until the antenna is fully tightened against the mounting base, torque 10~15N.M is recommended.

Installation Methods of R440B GNSS antennaInstallation Methods of R440B GNSS antenna

Step 2: Then the connector head part is secured with heavy-duty tape or glue, preventing loosening during vibration process.

Installation Diagram

Installation Diagram of R440 GNSS antennaInstallation Diagram of R440 GNSS antenna
