Description
The GNSSRK-M-DV series GNSS repeater kit is to direct outdoor full-band navigation satellite signals to places where indoor or other satellite signals cannot reach, and complete various kinds of test work indoor instead of outdoor.
|
Equipment Lists KIT A |
Equipment Lists KIT B |
|
GPS Amplifier: GA30-DV, 1ea; |
GPS Amplifier: GA30-DV, 1ea; |
|
Roof GNSS Antenna: R440A/S440, 1ea; |
Roof GNSS Antenna: R440A/S440, 1ea; |
|
Cable Assembly: RG8(LMR400), 30M, 1ea; |
Cable Assembly: RG8(LMR400),30M, 1ea; |
|
Cable Assembly: XHY240(LMR240), 20M, 1ea; |
Cable Assembly: XHY240(LMR240), 20M, 1ea; |
|
Re-radiate Antenna: GRA10, 1ea; |
Re-radiate Antenna: GRA10, 1ea; |
|
Ligting-protector: N-JK-G, 1ea; |
Ligting-protector: N-JK-G, 1ea; |
|
|
|

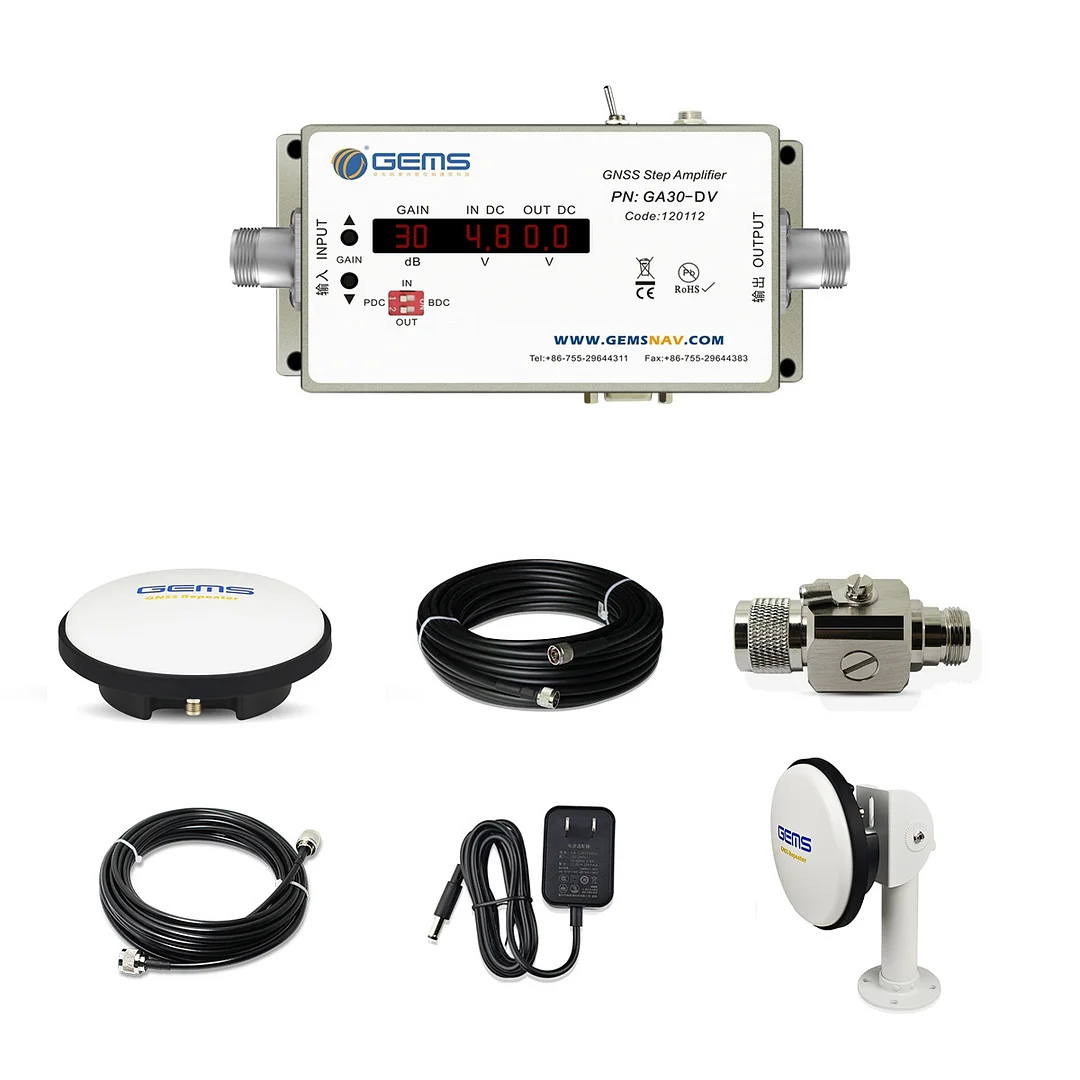

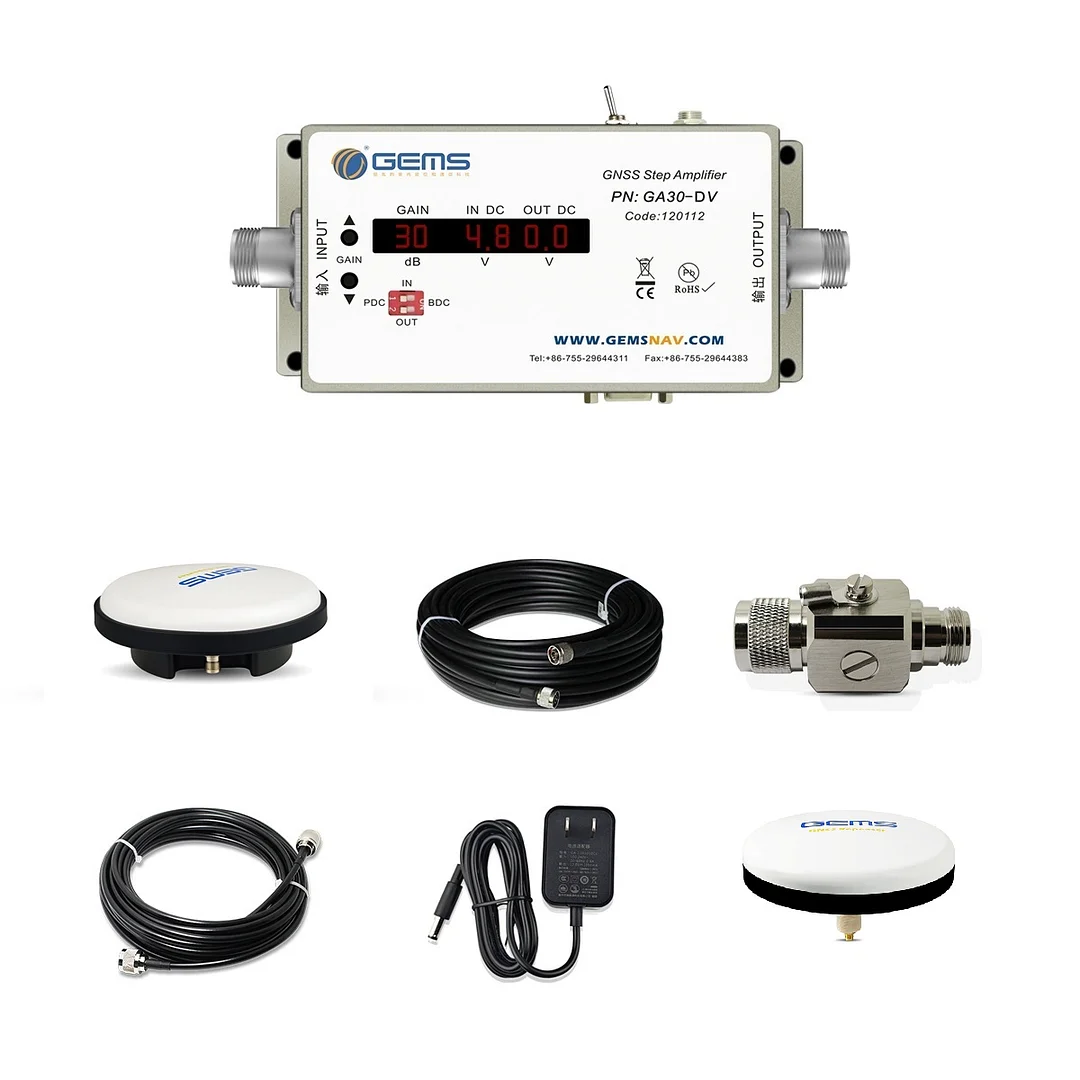

KIT A: GNSSRK-M-DV KIT B: GNSSRK-M-DV-Max
Note:
As we can see,
Kit A is GNSSRK-M-DV, this kit set doesn't include booster.
Kit B is GNSSRK-M-DV-Max, it have booster included.
Installation Diagram
System Characteristics
1. System signal: GPS/GLONASS/Beidou/Galileo/IRNSS/QZSS/SBAS/NAVIC/L-Band
2. Frequency range of the antenna: 1556~1623MHz and 1164~1288 MHz;
3. Frequency range of the amplifier: 1150~1650 MHz;
4. Digital gain adjustment: 0-30dB, LED digital display；
5. Serial command control；
6. Input and output port power setting；
7. Indoor Signal Coverage Range:
- GNSSRK-M-DV: A single antenna radiates a radius of 5-20 meters；
- GNSSRE-M-DV-Max:A single antenna radiates a radius of 10-30 meters.
Specification
|
Parameter |
Condition |
Mini |
Std |
Max |
Unit |
|
Frequency Range |
In ,Out, 50Ω |
1150 |
|
1650 |
MHz |
|
Impedance |
In ,Out |
|
50 |
|
Ω |
|
Gain |
Digital Step Adjustable |
|
0~30 |
|
dB |
|
Input VSWR |
|
|
|
2.0:1 |
- |
|
Output VSWR |
|
|
|
2.0:1 |
- |
|
Noise Figure |
|
|
|
3 |
dB |
|
Gain Flatness |
|
|
|
3 |
dB |
|
Delay Flatness |
|
|
1 |
|
ns |
|
Power Input |
12V DC Adaptor |
|
12 |
|
VDC |
|
Current |
Pass DC, No Powered configuration, DC input on Out Port |
|
|
250 |
mA |
|
1dB Compression |
|
|
|
-4 |
dBm |
|
Max RF Power |
|
|
|
0 |
dBm |
|
Nun. Of input |
|
|
1 |
|
pcs |
|
Nun. Of Output |
|
|
1 |
|
|
|
Max RF Input |
Maximum lossless RF input |
|
|
0 |
dBm |
|
Working Temperature |
|
-40° |
|
85° |
|
GPS Repeater Kit Installation
Roof Antenna installation
Re-radiate Antenna installation
Effectiveness of GPS Indoor Coverage
Typical Applications
- Indoor Navigation: Large buildings like airports, shopping malls, hospitals, and museums often have poor GPS reception indoors due to thick walls and roofs. GPS repeaters can ensure that GPS-based navigation systems work seamlessly indoors, helping people find their way around.
- Fleet Management: Companies with large vehicle fleets often use GPS tracking systems to monitor the location of their vehicles. GPS repeaters can ensure uninterrupted GPS signal reception inside garages or warehouses where vehicles are parked or maintained.
- Emergency Services: Police, fire departments, and other emergency services rely heavily on GPS for navigation and coordination. GPS repeaters can ensure that GPS signals are available inside their vehicles, even in urban canyons or areas with dense foliage where GPS signals might be weak.
- Military Applications: In military installations or vehicles, GPS repeaters can ensure continuous GPS signal availability, even in underground bunkers or heavily shielded areas.
- Maritime Applications: Ships and submarines may use GPS repeaters to ensure continuous GPS signal reception below deck, where satellite signals may be weak or blocked entirely.
- Agriculture: In precision agriculture, GPS technology is used for accurate mapping and navigation of agricultural machinery. GPS repeaters can ensure that signals remain strong even in areas with tall crops or dense foliage.
- Mining and Construction: In mining and construction sites, where heavy machinery and tall structures can obstruct GPS signals, GPS repeaters can ensure that equipment and vehicles remain accurately tracked and navigated.
- Aviation: In aircraft hangars or maintenance facilities, GPS repeaters can ensure that GPS receivers in aircraft receive strong signals for navigation and maintenance purposes.
- Research Facilities: Laboratories or research facilities located underground or in shielded buildings may use GPS repeaters to ensure continuous GPS signal availability for experiments or equipment calibration.
- Personal Use: Some individuals may install GPS repeaters in their homes or offices to improve GPS signal reception for personal navigation devices or to enhance the accuracy of location-based services on smartphones and tablets.
