1/4/8 Way Rackmout Digital Gain Adjustable GPS and GNSS Repeater kit GNSSRK-M-RDV | GNSSRK-M-RDV4 | GNSSRK-M-RDV8

1 / 7

0% OFF

Qty 200 in stock

Product Description Contact Us

Product Description

Product Description

The GNSSRK-M-RDV series GNSS repeater kit is to direct outdoor full-band navigation satellite signals to places where indoor or other satellite signals cannot be reached, and complete various test work indoor instead of outdoor.

Product Differences

	Antenna Quantity	Coverage Range
GNSSRK-M-RDV	1	each radiating 5-20 meters
GNSSRK-M-RDV4	4	each radiating 5-20 meters
GNSSRK-M-RDV8	8	each radiating 5-20 meters

Specification

Items	Value
Model Number	GNSSRK-M-RDV / GNSSRK-M-RDV4 / GNSSRK-M-RDV8
Type	GNSS repeater kit
Place of Origin	Guangdong, China
Brand Name	GEMS
Certificate	CE, ROHS
Applications	Design for wireless infrastructure and survey
Net Weight (kg/pcs)	10.00 ~ 10.30 (different connectors)
Gross Weight (kg/pcs)	12.00 ~ 12.36 (different connectors)

Parameter	Condition	Mini	Std.	Max	Unit
Frequency Range	In ,Out, 50Ω	1150		1650	MHz
Impedance	In ,Out		50		Ω
Gain	Digital Step Adjustable		0~30		dB
Input VSWR				2.0:1	-
Output VSWR				2.0:1	-
Noise Figure				3	dB
Gain Flatness				3	dB
Delay Flatness			1		ns
Power Input	220VAC	100	220	264	VAC
Current				250	mA
1dB Compression	RGA30-DV			-4	dBm
	RGA30-DV4			-29
	RGA30-DV8			-29
Max RF Power	RGA30-DV			0	dBm
	RGA30-DV4			-23
	RGA30-DV8			-27
Nun. Of input	GA30-DV,GA30-DV4,GA30-DV8		1		pcs
Nun. Of Output	RGA30-DV		1
	RGA30-DV4		4
	RGA30-DV8		8
Max RF Input	Maximum lossless RF input			0	dBm
Working Temperature		-40°		85°

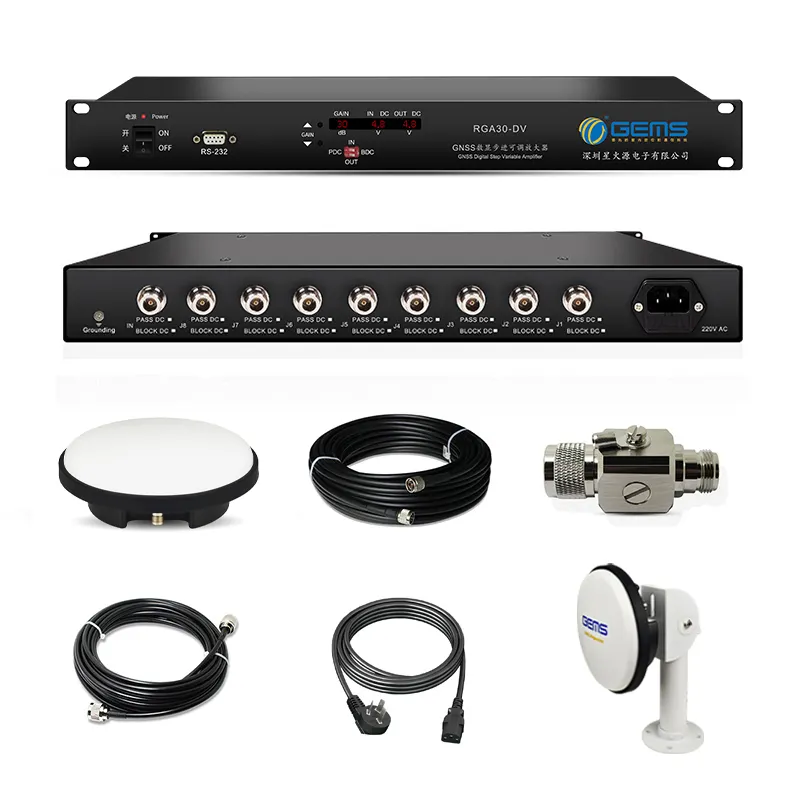

Equipment Lists with Standard Configuration

Note:

There are more RF coaxial cable assembly choices for you if actual requirements is needed.

GNSSRK-M-RDV	GNSSRK-M-RDV4	GNSSRK-M-RDV8
Amplifier: RGA30-DV, 1 ea	Amplifier: RGA30-DV4, 1 ea	Amplifier: RGA30-DV8, 1 ea
GNSS Antenna: S440, 1 ea	GNSS Antenna: S440, 1 ea	Receiving Antenna: S440, 1 ea
Cable Assembly: RG8, 30M, 1ea	Cable Assembly: RG8, 30M, 1ea	Cable Assembly: RG8, 30M, 1ea
Cable Assembly: XHY240, 20M, 1 ea	Cable Assembly: XHY240, 20M, 4 ea	Cable Assembly: XHY240, 20M, 8 ea
Cable Assembly: XHY240, 5M, 1 ea	Cable Assembly: XHY240, 5M, 1 ea	Cable Assembly: XHY240, 5M, 1 ea
Sending Antenna: GRA10, 1 ea	Sending Antenna: GRA10, 4 ea	Sending Antenna: GRA10, 8 ea
Ligting-protector: N-JK-G, 1 ea	Ligting-protector: N-JK-G, 1 ea	Ligting-protector: N-JK-G, 1 ea
Connector: NK-NK 1ea	Connector: NK-NK 1ea	Connector: NK-NK 1ea

Packing & Delivery

Since this item are consist of different products, so there are different types of package for them, which are shown as below:

the Package Picture of GRA10 Antenna the Package Picture of S440 Antenna the Package Picture of RGA30-DV Amplifier

Packing Process

Firstly, each piece of item is wrapped with a plastic bag, and then go with the box, to perfectly protect it from getting hurt.

Lastly, all the boxes will be placed in a big carton one by one, and wrap the carton with adhesive tape, which is strong enough to withstand rough handling during transportation.

Note:

If additional requirements is demanded, just pls let us know, we will try our best to meet your requirements.
